Analyzing Data from Multiple Files

Analyzing Data from Multiple Files#

Objectives

Use a library function to get a list of filenames that match a wildcard pattern.
Write a for loop to process multiple files.

Questions

How can I do the same operations on many different files?

As a final piece to processing our inflammation data, we need a way to get a list of all the files in our data directory whose names start with inflammation- and end with .csv. The following library will help us to achieve this:

import glob

The glob library contains a function, also called glob, that finds files and directories whose names match a pattern. We provide those patterns as strings: the character * matches zero or more of any character. We can use this to get the names of all the CSV files in the `data`` directory:

print(glob.glob('data/inflammation*.csv'))

['inflammation-05.csv', 'inflammation-11.csv', 'inflammation-12.csv', 'inflammation-08.csv',
'inflammation-03.csv', 'inflammation-06.csv', 'inflammation-09.csv', 'inflammation-07.csv',
'inflammation-10.csv', 'inflammation-02.csv', 'inflammation-04.csv', 'inflammation-01.csv']

As this output shows, glob.glob’s result is a list of paths in arbitrary order. Let’s just look at the first three datasets. So we need to sort the glob output, and then take the first three:

filenames = sorted(glob.glob('data/inflammation*.csv'))
filenames = filenames[0:3]

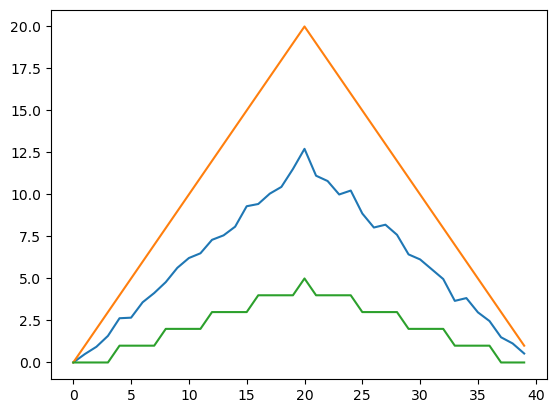

Now that we have our list of files to analyze, let’s use matplotlib to make a plot of the minimum, mean, and maximum inflammation on each day during the trial:

for filename in filenames:
    print(filename)

    data = numpy.loadtxt(filename, delimiter=",")

    matplotlib.pyplot.plot(numpy.mean(data, axis=0))
    matplotlib.pyplot.plot(numpy.max(data, axis=0))
    matplotlib.pyplot.plot(numpy.min(data, axis=0))
    matplotlib.pyplot.show()

inflammation-01.csv

inflammation-02.csv

inflammation-03.csv

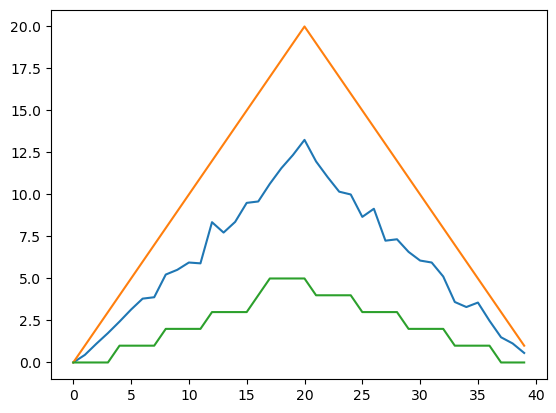

The plots generated for the second clinical trial file look very similar to the plots for the first file: their average plots show similar “noisy” rises and falls; their maxima plots show exactly the same linear rise and fall; and their minima plots show similar staircase structures.

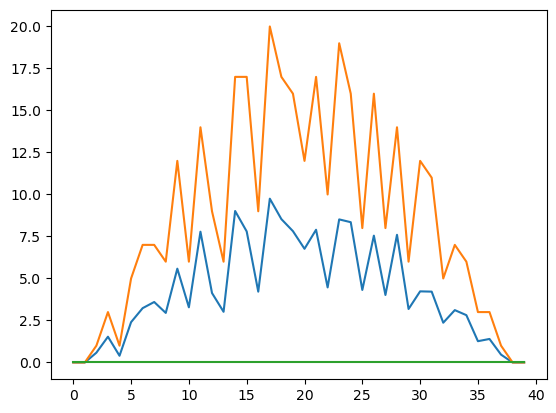

The third dataset shows much noisier average and maxima plots that are far less suspicious than the first two datasets, however the minima plot shows that the third dataset minima is consistently zero across every day of the trial. If we produce a heat map for the third data file we see the following:

data = numpy.loadtxt("data/inflammation-03.csv", delimiter=",")
matplotlib.pyplot.imshow(data)

We can see that there are zero values sporadically distributed across all patients and days of the clinical trial, suggesting that there were potential issues with data collection throughout the trial. In addition, we can see that the last patient in the study didn’t have any inflammation flare-ups at all throughout the trial, suggesting that they may not even suffer from arthritis!

Challenge: Plotting Differences

Change the code above to plot the average, minimum, and maximum for all the inflammation datasets, not just the first three.

Do you notice anything else suspicious about the data?

Challenge: Plotting Differences

Plot the difference between the average inflammations reported in the first and second datasets (stored in inflammation-01.csv and inflammation-02.csv, correspondingly), i.e., the difference between the leftmost plots of the first two figures.

Hint: You can get the difference between two NumPy arrays using the - operator (e.g. data1 - data2)

Challenge: Finding suspicious datasets

Change the code you wrote for the previous challenge to compare the daily averages for two of the datasets with suspicious minima plots (inflammation-03.csv, inflammation-08.csv, and inflammation-11.csv) in our earlier investigation.

After spending some time investigating the heat map and plots, as well as doing the above exercises to plot differences between datasets, we gain some insight into the twelve clinical trial datasets.

The datasets appear to fall into two categories:

seemingly “ideal” datasets that agree excellently with Dr. Maverick’s claims, but display suspicious maxima and minima (such as inflammation-01.csv and inflammation-02.csv)
“noisy” datasets that somewhat agree with Dr. Maverick’s claims, but show concerning data collection issues such as sporadic missing values and even an unsuitable candidate making it into the clinical trial (such as inflammation-03.csv).

In fact, it appears that all three of the “noisy” datasets (inflammation-03.csv, inflammation-08.csv, and inflammation-11.csv) are identical down to the last value. Armed with this information, we confront Dr. Maverick about the suspicious data and duplicated files.

Dr. Maverick has admitted to fabricating the clinical data for their drug trial. They did this after discovering that the initial trial had several issues, including unreliable data recording and poor participant selection. In order to prove the efficacy of their drug, they created fake data. When asked for additional data, they attempted to generate more fake datasets, and also included the original poor-quality dataset several times in order to make the trials seem more realistic.

Congratulations! We’ve investigated the inflammation data and proven that the datasets have been synthetically generated.

But it would be a shame to throw away the synthetic datasets that have taught us so much already, so we’ll forgive the imaginary Dr. Maverick and continue to use the data to learn how to program.

Keypoints

Use glob.glob(pattern) to create a list of files whose names match a pattern.
Use * in a pattern to match zero or more characters, and ? to match any single character.
